Did you know 95% of cabin owners choose a concrete slab foundation? This shows how popular and reliable slab foundations are for cabins. A well-made slab foundation keeps your cabin stable and prevents it from shifting or sinking.
Building a slab foundation is a key step in making your cabin dream come true. It doesn’t matter if you want a cozy cabin in the woods or a lakeside retreat. A solid foundation is essential for your cabin’s long life. In this guide, we’ll show you how to build a strong concrete slab for your cabin.
We’ll cover everything from planning and site prep to pouring concrete and adding the final touches. You’ll learn about picking the right materials, reinforcement methods, and insulation options for your foundation. So, put on your work gloves and let’s start exploring slab foundations!
Understanding Slab Foundations
Slab foundations are a favorite for building cabins. They serve as both the foundation and the floor. Let’s dive into what slab foundations are and why they’re great for cabins.
What is a Slab Foundation?
A slab foundation is a big concrete pad laid directly on the ground. It’s a common choice in modern building. There are two main types:
- Monolithic slab: A single concrete pour with thick edges for support
- Floating slab: A two-step pour with a separate footing and slab
Benefits of Slab Foundations
Slab foundations have many benefits for cabins:
| Benefit | Description |
|---|---|
| Durability | Can last up to 100 years with care |
| Cost-effective | Less expensive than basement foundations |
| Energy efficiency | Helps save on heating and cooling costs |
| Pest resistance | Keeps pests out with a solid barrier |
| Flood protection | Offers better protection against floods |
Choosing a slab foundation for your cabin means faster building and lower costs. It’s a solid, easy-to-maintain choice.
Planning Your Cabin’s Slab Foundation
Planning a slab foundation for your cabin is a big task. You need to think about many things to make sure it lasts long and stays stable. Let’s look at the important steps you should take.
Considering Soil Type
Soil analysis is key to picking the right foundation design. Sandy soil drains fast but might need extra support. Clay soil can cause problems because it expands and contracts.
A professional soil test can tell you the best way to handle your site.
Local Building Codes and Regulations
Before you start, learn about local building codes. Get the right building permits to follow the rules. This is important to avoid legal trouble and make sure your cabin is safe.
Budgeting
Make a detailed budget for your slab foundation project. Think about costs for site prep, materials, labor, and any surprises. Don’t forget to include:
- Concrete mix and reinforcement materials
- Equipment rental for site prep
- Professional services (soil testing, surveying)
- Permit fees
Good planning is the first step to a successful slab foundation. By thinking about soil, rules, and budget, you’re ready to start your cabin project.
Tools and Materials Needed
Building a slab foundation for your cabin needs specific tools and materials. Let’s look at what you’ll need to make a strong base for your dream home.
Essential Tools
A laser level is key for a perfectly level foundation. This tool can handle 30-foot drops and tough conditions. A string level, costing under $3, is also important for leveling. Don’t forget a durable tape measure like the Stanley Powerlock 25ft, which can withstand being run over.
Materials for a Stable Slab
Your slab foundation needs several key materials. Concrete is the main part, mixed in a concrete mixer for the best consistency. Rebar or wire mesh adds strength, preventing cracks and ensuring durability. A vapor barrier is also essential to block moisture from seeping through the concrete.
| Material | Quantity | Purpose |
|---|---|---|
| Concrete | As per cabin size | Main foundation material |
| Rebar | As per design | Structural reinforcement |
| Vapor barrier (6-mil reinforced poly) | Cover entire slab area | Moisture protection |
| EPS foam (Type IX) | Two 2-inch layers | Insulation |
Remember, the foundation must be level within 1/8th of an inch to prevent wall misalignment. Take your time with the foundation work – it’s worth spending twice as long to ensure quality. With these tools and materials, you’re ready to create a solid base for your cabin.

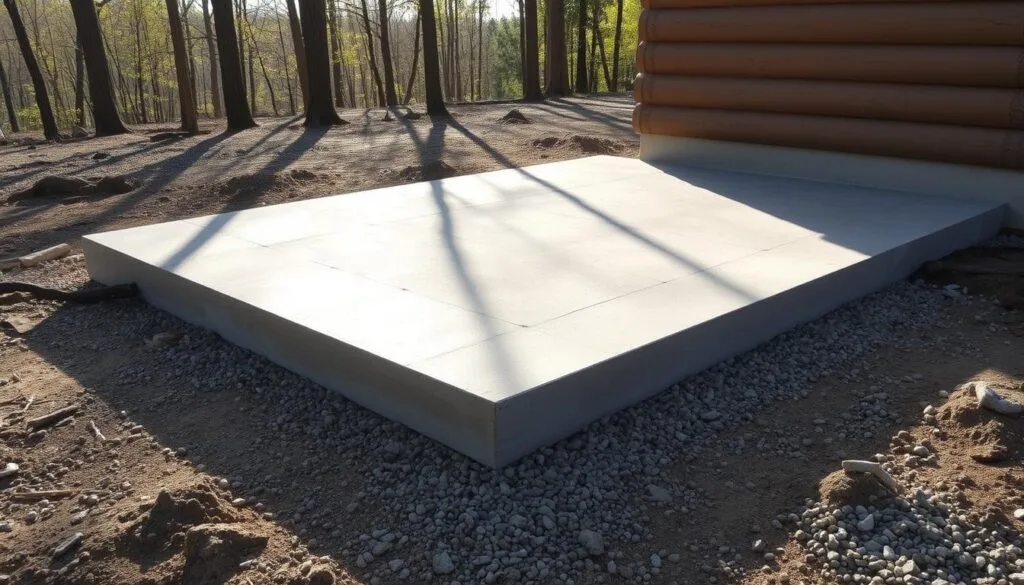

Preparing the Site
Getting your site ready for a cabin foundation is key. This means digging, leveling the ground, and laying out the foundation. Let’s look at the main steps to get your site ready for a slab foundation.
Clearing and Grading
First, clear the area of plants, rocks, and trash. Take out the topsoil to get to solid ground. It’s important to level the ground for a solid foundation. Use big machines for digging, making sure the area is even and packed down.
- Soil testing to determine bearing capacity
- Proper drainage to prevent water accumulation
- Compacting the site to improve stability
- Removing roots or rocks that could affect the foundation
Measuring and Marking
Getting the foundation layout right is vital. Use stakes and string to mark your cabin’s outline. Make sure all corners are square and the size fits your plans. Check your measurements carefully to avoid mistakes.
| Foundation Type | Cost Range (per sq ft) | Benefits |
|---|---|---|
| Gravel | $3 – $12 | Cost-effective, suitable for smaller structures |
| Concrete Slab | $6 – $10 | Durable, excellent insulation, long-lasting |
| Crawl Space | $6,000 – $15,000 (total) | Easy utility access, good for mild climates |
Don’t forget to call 811 before digging to find utility lines. This step keeps you safe and avoids damage to underground lines.
Pouring Concrete
The concrete pouring process is key in building your cabin’s slab foundation. The right mix and techniques ensure a strong base for your structure.
Choosing Concrete Mix
A 3000-3500 PSI concrete mix is best for cabin foundations. In cold areas, air-entrained concrete is better for fighting freeze-thaw damage. Use four parts cement to one part sand or gravel for the strongest mix.
Step-by-Step Pouring
Begin by getting the site ready. Dig down 4 to 6 inches, and add 8 inches extra for stability. For a 4m x 4m cabin, aim for a 4.4m x 4.4m base.
Keep the slab thickness even. Small cabins need at least 3½ inches of concrete. Larger ones need 4-5 inches. Pour over a well-compacted stone base for extra strength.
After pouring, smooth the surface and add texture if you want. Let the concrete cure for at least a week before placing the cabin. This ensures your foundation is strong and durable.
| Foundation Type | Average Cost (per sq ft) | Typical Thickness |
|---|---|---|
| Slab | $4-$5 | 4-6 inches |
| Crawl Space | $7 | N/A |
| Basement | $18 | 8-10 inches (walls) |
Reinforcement Techniques
Reinforcement is key to stopping cracks and making your cabin’s slab foundation stronger. We’ll look at ways to strengthen your foundation. This ensures it can hold your cabin’s weight and all the memories you’ll make there.

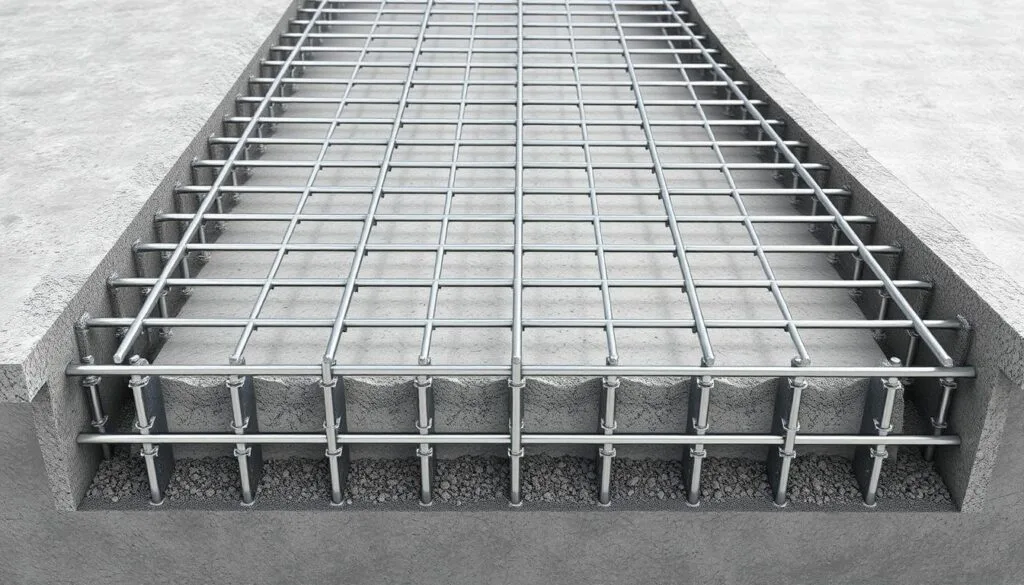

Using Rebar
Steel reinforcement, or rebar, is a top pick for making concrete slabs stronger. For slabs 5 inches or thicker, use 1/2-inch rebar. Place the rebar in a 4-foot grid, overlapping sections by at least 6 inches and tie them together with wire. This sets up a strong framework in the concrete.
Alternatives to Rebar
Wire mesh is another good steel reinforcement option. It’s a square grid pattern laid down before pouring concrete. This method is quicker than rebar and offers even reinforcement across the slab.
Fiber reinforcement is a modern choice that mixes fibers into the concrete. It helps stop cracks from temperature and density changes. It’s faster to use than wire mesh because it doesn’t need careful positioning during pouring.
| Reinforcement Type | Pros | Cons |
|---|---|---|
| Rebar | Strong, ideal for thick slabs | Time-consuming to install |
| Wire Mesh | Uniform reinforcement, quicker than rebar | Less strength than rebar |
| Fiber Reinforcement | Easy to use, prevents micro-cracks | May not be suitable for heavy loads |
Pick the reinforcement method that fits your cabin’s needs and local building codes. Remember, the right reinforcement is essential for a lasting, stable foundation for your dream cabin.
Curing Concrete
Curing concrete is a key step in building your cabin’s slab foundation. It makes sure your concrete is strong and durable. Let’s explore why curing is important and how to do it correctly.
Importance of Curing
Proper curing helps concrete get stronger. In the first week, it gains about 75% of its strength. To get the most strength, cure it for 4 weeks. This makes your foundation strong, lasting, and less likely to crack or wear out.
Effective Curing Methods
Keeping concrete moist is vital for curing. Keep it wet for at least 7 days after pouring. You can use a curing compound to prevent water loss. Or, cover it with plastic sheeting or wet burlap.
For the best results, follow these tips:
- Start curing as soon as the concrete surface hardens
- Maintain consistent moisture with regular spraying or misting
- Protect the slab from direct sunlight and wind
- Avoid walking on the concrete for at least 24 hours
- Wait 10 days before driving on the slab
Proper curing greatly improves your concrete’s strength and durability. It’s a small effort that pays off big in your cabin’s foundation quality.
Insulating Slab Foundation
Insulating your cabin’s slab foundation is a smart move for energy efficiency and comfort. Let’s explore the types of insulation and their benefits for your cozy retreat.
Types of Insulation
Rigid foam board insulation is a popular choice for slab foundations. It comes in various thicknesses and R-values, fitting different climate needs. Spray foam insulation is another option, providing higher R-values than traditional batt insulation.
For slab foundations, insulation placement varies:
- Under the slab
- Around the perimeter
- On top of the slab
In colder climates, insulating the entire area under the slab is most effective. For perimeter insulation, extend it at least two feet down from the slab’s top to reduce heat loss.
Benefits of Insulation
Proper slab insulation creates a thermal break, boosting your cabin’s energy efficiency. It significantly cuts heating and cooling costs while making your cabin more comfortable. In warmer areas, an uninsulated slab can even lower air-conditioning bills.
Key advantages include:
- Improved temperature control
- Reduced energy consumption
- Prevention of moisture issues
- Enhanced overall comfort
Remember to use a vapor barrier, like 6-mil polyethylene sheeting, to stop ground moisture. Seal all joints and edges carefully to prevent air leaks, maximizing your insulation’s effectiveness.
Finishing Touches
As we near the end of building a foundation for a log cabin, it’s time for the final steps. These steps are key for both the look and function of your slab foundation. Let’s explore the important parts of concrete finishing and surface treatment.
Smoothing and Texturing
After pouring and letting the concrete set for 24-48 hours, it’s time to smooth it out. You’ll use special tools to make the surface level and even. Adding texture can also make it safer by preventing slips.
This slab is more than just a foundation. It’s the floor of your cabin. So, aim for both looks and function.

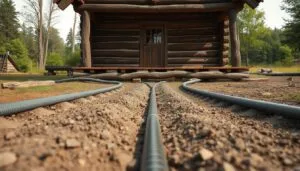

Adding Drainage
Good drainage is essential for your foundation’s long life. A perimeter drain around the slab helps keep water away from your cabin. This is critical, as a concrete slab base is usually 4 to 6 inches thick.
By focusing on these finishing touches, you’re not just finishing a project. You’re making sure your log cabin’s foundation is stable and durable for years. With the right concrete finishing and a well-planned drain, your cabin’s foundation will last for decades. Some installations have been around even longer, like those from World War II.
